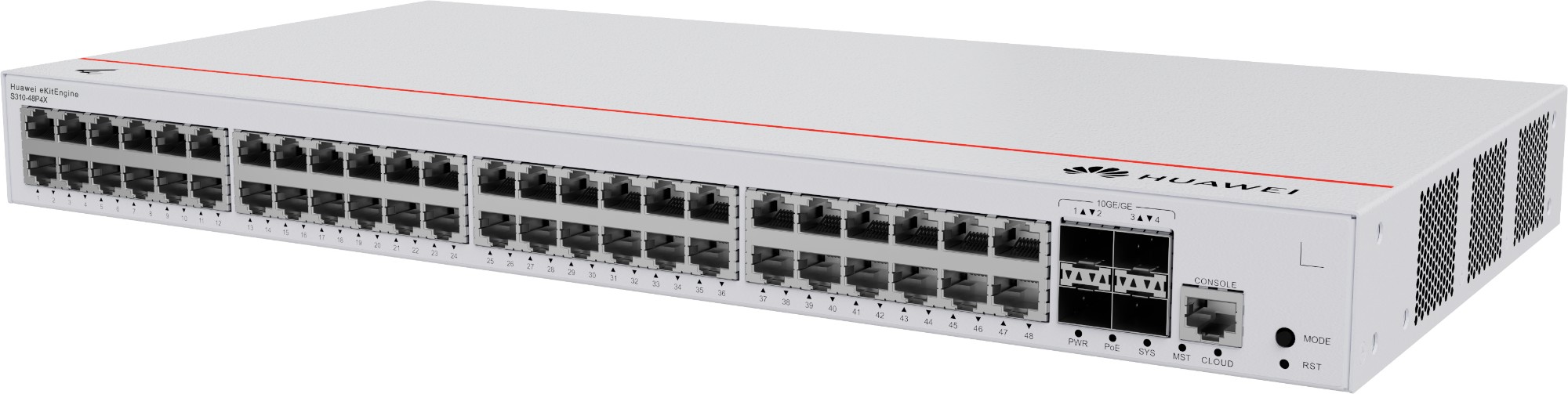

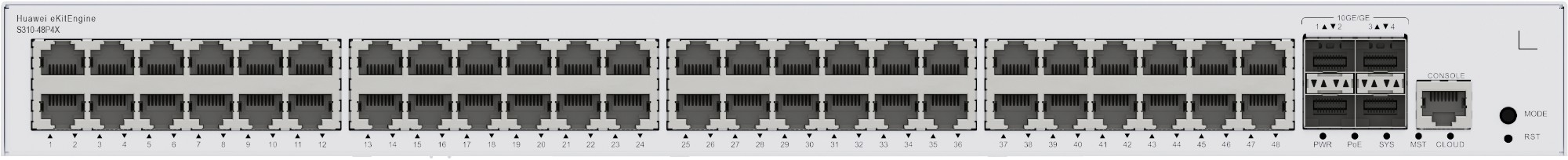

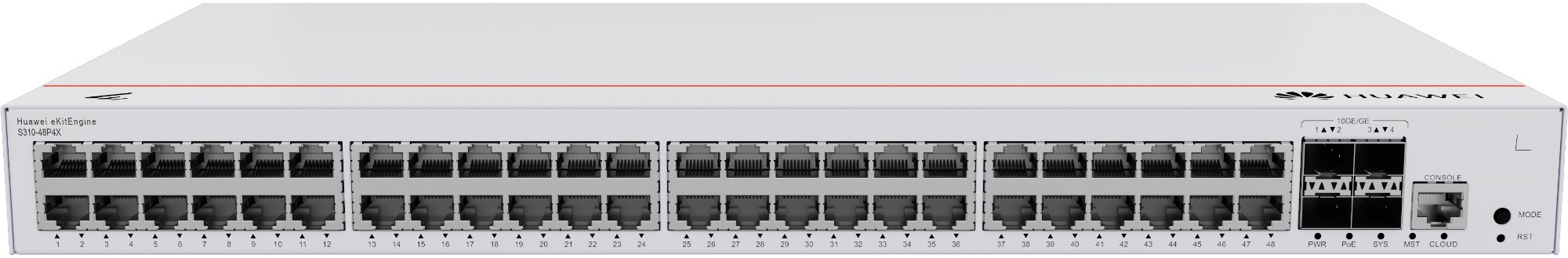

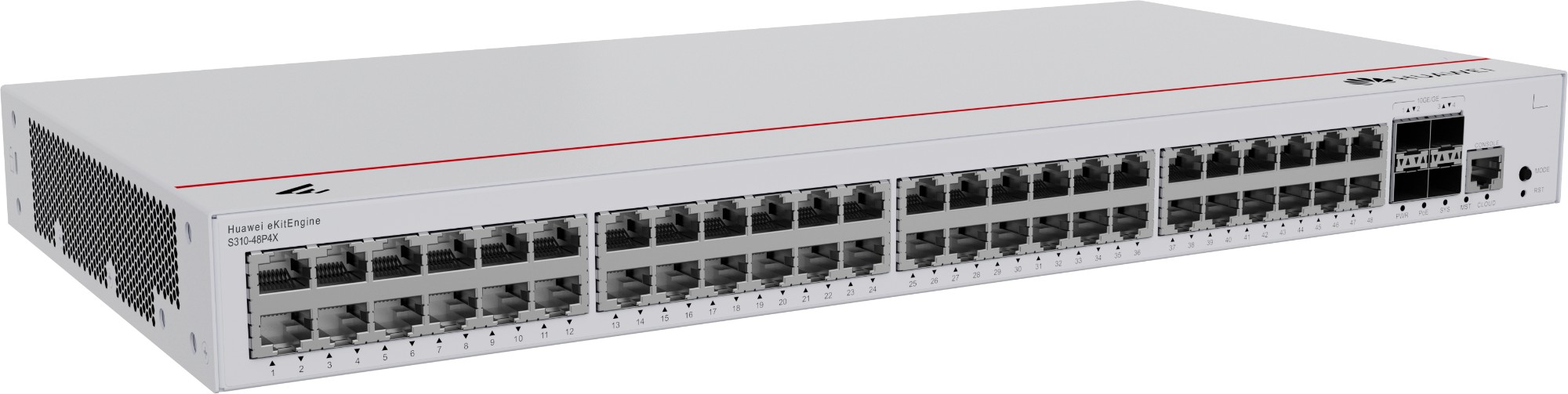

HUAWEI eKit S310 Series S310-48P4X Managed L2+ Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Grijs
- Merk: Huawei
- Categorie:
- SKU: 98012385
- EAN: 6901443450176
HUAWEI eKit S310 Series S310-48P4X, Managed, L2+, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), Rack-montage, 1U
Offer details
Beschrijving
HUAWEI eKit S310 Series S310-48P4X. Switch type: Managed, Switch-laag: L2+. Type basis-switching RJ-45 Ethernet-poorten: Gigabit Ethernet (10/100/1000), Aantal basis-switching RJ-45 Ethernet-poorten: 48, Aantal geïnstalleerde SFP+ modules: 4, Console port: RJ-45. MAC-adrestabel: 16000 entries, Switchingcapaciteit: 176 Gbit/s. Power over Ethernet (PoE). Rack-montage, Vormfactor: 1U
Specificaties
Beheerfuncties | |
---|---|
Switch-laag | L2+ |
Switch type | Managed |
Multicast-ondersteuning | Ja |
Locatie-instellingen (CLI) configureren | Ja |
Cloud-beheerd | Ja |
Poorten & interfaces | |
Aantal basis-switching RJ-45 Ethernet-poorten | 48 |
Type basis-switching RJ-45 Ethernet-poorten | Gigabit Ethernet (10/100/1000) |
Aantal geïnstalleerde SFP modules | 0 |
Aantal geïnstalleerde SFP+ modules | 4 |
Console port | RJ-45 |
Netwerk | |
Aantal VLANs | 4094 |
VLAN=ondersteuning | Ja |
Verbindingsaggregatie | Ja |
10G support | Ja |
Data-uitwisseling | |
MAC-adrestabel | 16000 entries |
Switchingcapaciteit | 176 Gbit/s |
Statische route | Ja |
Verzending snelheid | 131 Mpps |
Aantal VLANs | 4094 |
Beveiliging | |
Bescherming lus | Ja |
Ondersteunde beveiligingsalgoritmen | SNMP, SNMPv2, SNMPv3 |
DHCP-functies | DHCP client, DHCP server, DHCP snooping, DHCPv6 snooping |
Multicast-functies | |
Multicast-ondersteuning | Ja |
Design | |
Rack-montage | Ja |
Kleur van het product | Grijs |
Vormfactor | 1U |
Materiaal behuizing | Metaal |
LED-indicatoren | Ja |
Internationale veiligheidscode (IP) | IP20 |
Prestatie | |
Geluidsniveau | 63 dB |
Energie | |
Vermogensverbruik (max) | 462,8 W |
Vermogenstoevoer inclusief | Ja |
AC-ingangsspanning | 100 - 240 V |
AC-ingangsfrequentie | 50/60 Hz |
Stroombron | AC |
Power over Ethernet (PoE) | |
Power over Ethernet (PoE) | Ja |
Totaal Power over Ethernet (PoE)-budget | 380 W |
Eisen aan de omgeving | |
Bedrijfstemperatuur (T-T) | -5 - 50 °C |
Temperatuur bij opslag | -40 - 70 °C |
Relatieve vochtigheid in bedrijf (V-V) | 5 - 95 procent |
Hoogte, in bedrijf | 0 - 5000 m |
Hoogte bij opslag | 0 - 5000 m |
Virtuele LAN-functies | |
Aantal VLANs | 4094 |
VLAN=ondersteuning | Ja |
Gewicht en omvang | |
Breedte | 442 mm |
Diepte | 220 mm |
Hoogte | 43,6 mm |
Verpakking | |
Gewicht verpakking | 4,29 kg |
