Does your datacenter seem to be overheating on a regular basis?

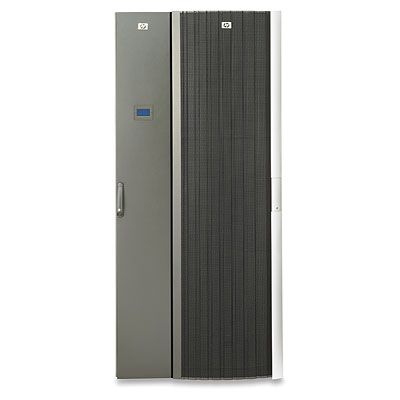

The HP Modular Cooling System G2 is the next generation self-cooled rack for high density deployments in the datacenter. HP's new Bi-Directional cooling technology makes possible the simultaneous cooling of two racks with a single MCS G2 unit. The MCS G2 racks can cool up to 17.5 kW per rack when cooling two racks or up to 35 kW when cooling a single rack. HP MCS G2 is designed to complement the existing conventional datacenter cooling by adding computing power without adding to the current heat load in the datacenter. In addition, by packing three times the KW capacity of a standard rack, the MCS G2 considerably extends the life of your datacenter.
Next generation self-cooled rack
• The HP Modular Cooling System G2 has been designed to support a full rack load of servers and or blades, which at their maximum configuration require a power load up to 35 kW.
Next generation self-cooled rack
• The HP Modular Cooling System G2 has been designed to support a full rack load of servers and or blades, which at their maximum configuration require a power load up to 35 kW.
Specificaties
Gewicht en omvang | |
---|---|
Gewicht verpakking | 621,4 kg |
Breedte | 909 mm |
Diepte | 1270 mm |
Hoogte | 2004 mm |
Gewicht | 434 kg |
Kenmerken | |
Inbegrepen zijpanelen | Ja |
Energie | |
Nominale netspanning | 15 A |
Eisen aan de omgeving | |
Bedrijfstemperatuur (T-T) | 5 - 35 °C |
Relatieve vochtigheid in bedrijf (V-V) | 20 - 80 procent |
Verpakking | |
Gewicht verpakking | 621,4 kg |
Overige specificaties | |
Stroomverbruik (typisch) | 2000 W |
Stroom (max.) | 54 A |
Afmetingen verpakking (BxDxH) | 1220 x 1778 x 2248 mm |
Luchtcirculatie | 2400 CFM |
