HPE A A5800-24G L3 Power over Ethernet (PoE) 1U Zwart

HPE A A5800-24G L3 Power over Ethernet (PoE) 1U Zwart

  • Merk: HPE
  • Categorie:
  • SKU: JC100A
  • EAN: 0885631165218 8856311651644 08 ...1651644 0885631165164 4053162291270 0885631165188 0885631165201 0885631165171 8856311651712meer

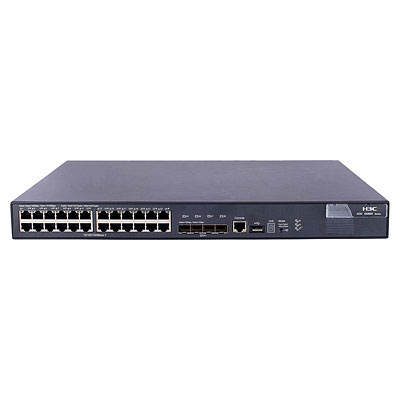

HP 5800-24G Switch

Handelsprijzen

Distributeur Product SKU Voorraad Bijgewerkt Prijs
Direct Hardware Supply

FLEXFABRIC 5800 24G SWITCH

 JC100A Registreer gratis bekijk de voorraad

Verwante producten

Beschrijving

HP 5800 series switches offer an unmatched combination of Gigabit and 10-Gigabit Ethernet port density, high-availability architecture, and full Layer 2 and Layer 3 dual-stack IPv4 and IPv6 capabilities. In addition to wire-speed line-rate performance on all ports, the switches include patented Intelligent Resilient Framework (IRF) technology and Rapid Ring Protection Protocol (RRPP), which allow local or geographically distributed HP 5800 switches to be interconnected for higher resiliency and performance. Available in PoE and non-PoE models as well as 1 RU and 2 RU form factor configurations, HP 5800 switches are built on open standards and include an open application architecture (OAA) module slot that enables flexible deployment options for new services. These versatile switches are ideal for use in the network core of buildings or departments, or as high-performance switches in the convergence layer or network edge of enterprise campus networks.

Quality of Service (QoS)

• Powerful QoS feature: creates traffic classes based on access control lists (ACLs), IEEE 802.1p precedence, IP, and DSCP or Type of Service (ToS) precedence; supports filter, redirect, mirror, or remark; supports the following congestion actions: strict priority (SP) queuing, weighted round robin (WRR), weighted fair queuing (WFQ), weighted random early discard (WRED), weighted deficit round robin (WDRR), and SP+WDRR


Management

• Remote configuration and management: enables configuration and management through a secure Web browser or a CLI located at a remote device


Connectivity

• High-density port connectivity: supports up to 84 1-Gigabit ports per unit (612 per stack)


Performance

• Hardware-based wire-speed access control lists (ACLs): helps provide high levels of security and ease of administration without impacting network performance with a feature-rich TCAM-based ACL implementation


Resiliency and high availability

• Data center–optimized design: the HP 5800AF-48G Switch (JG225A) supports front-to-back/back-to-front airflow for hot/cold aisles, rear rack mounts, and redundant hot-swappable AC or DC power and fans


Manageability

• Full-featured console: provides complete control of the switch with a familiar CLI


Layer 2 switching

• GARP VLAN Registration Protocol: allows automatic learning and dynamic assignment of VLANs

Specificaties

Beheerfuncties
Switch-laagL3
Poorten & interfaces
Aantal basis-switching RJ-45 Ethernet-poorten24
Aantal moduleslots SPF+4
Aantal SFP/SFP+ poorten4
NetstekkerDC-in ingang
Koperen ethernetbekabelingstechnologie1000BASE-T, 100BASE-T, 100BASE-TX, 10BASE-T
Netwerk
NetwerkstandaardIEEE 802.3ab, IEEE 802.3af, IEEE 802.3u
Full duplexJa
Koperen ethernetbekabelingstechnologie1000BASE-T, 100BASE-T, 100BASE-TX, 10BASE-T
IP routingJa
DatastroombeheerJa
Broadcast stormbeheerJa
Auto MDI/MDI-XJa
10G supportJa
Data-uitwisseling
MAC-adrestabel32000 entries
Ondersteunde data-overdrachtsnelheden10/100/1000 Mbps
Switchingcapaciteit208 Gbit/s
Throughput155 mpps
Packet buffergeheugen4 MB
Beveiliging
DHCP-functiesDHCP server, DHCP client
Protocollen
BeheerprotocollenIMC, SNMP, Telnet, HTTPS, RMON1, FTP
Design
Rack-montageJa
StapelbaarNee
Kleur van het productZwart
Vormfactor1U
LED-indicatorenJa
VeiligheidUL 60950-1; EN 60825-1 Safety of Laser Products-Part 1; EN 60825-2 Safety of Laser Products-Part 2; IEC 60950-1; CAN/CSA-C22.2 No. 60950-1; Anatel; ULAR; GOST; EN 60950-1/A11; FDA 21 CFR Subchapter J; NOM; ROHS Compliance
Elektromagnetische compatibiliteitVCCI Class A; EN 55022 Class A; ICES-003 Class A; ANSI C63.4 2003; AS/NZS CISPR22 Class A; EN 61000-3-2:2006; EN 61000-3-3:1995 +A1:2001+A2:2005; EMC Directive 2004/108/EC; FCC (CFR 47, Part 15) Class A
CertificeringRoHs
Prestatie
Type geheugenSDRAM
Intern geheugen512 MB
Geluidsniveau52,9 dB
Flash memory512 MB
StapelbaarNee
Packet buffergeheugen4 MB
Energie
Stroomverbruik (typisch)15,4 W
Ingangsspanning100 - 240 V
StroombronAC
NetstekkerDC-in ingang
Power over Ethernet (PoE)
Power over Ethernet (PoE)Ja
Overige specificaties
Latentie4.02 µs
Afmetingen (B x D x H)467 x 440 x 43,6 mm
WifiJa
Power LEDJa
NetwerkfunctiesGigabit Ethernet
Frequentie50 / 60 Hz
Uitbreidingsslots4x SFP + 1 Exp sl
Gewicht (imperiaal)6 kg (13.2 lbs)
Afmetingen (B x D x H) (Brits)364,5 x 439,9 x 43,7 mm (14.3 x 17.3 x 1.72")
Ingangsspanning100 - 240 V
Eisen aan de omgeving
Bedrijfstemperatuur (T-T)0 - 45 °C
Relatieve vochtigheid in bedrijf (V-V)10 - 90 procent
Warmtedissipatie358 BTU/h
Gewicht en omvang
Gewicht6 kg
Certificaten
CertificeringRoHs
