HPE A A5120-48G EI Zwart

  • Merk: HPE
  • Categorie:
  • SKU: JE069A
  • EAN: 5712505694916 4053162291980 08 ...2291980 0885631199800 8856312017630 0885631201756 0885631201800 4056572402328 0885631201763 3540260117607 0885631201794 0885631201770 6934648014478meer

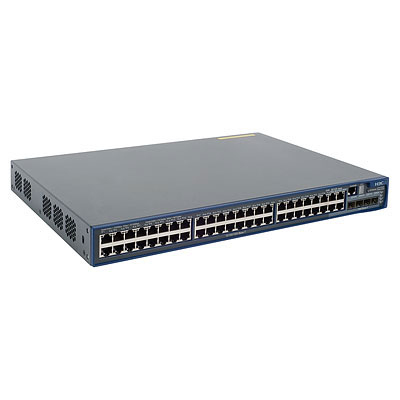

HP 5120-48G EI Switch with 2 Interface Slots

Handelsprijzen

Distributeur Product SKU Voorraad Bijgewerkt Prijs
Direct Hardware Supply

HP 5120-48G EI Switch with 2 Interface Slots

 JE069A Registreer gratis bekijk de voorraad

Verwante producten

Beschrijving

The HP 5120 EI Switch Series is comprised of Gigabit Ethernet switches that support static Layer 3 routing, diversified services, and IPv6 forwarding, as well as provide up to four 10-Gigabit Ethernet (10GbE) extended interfaces. Unique Intelligent Resilient Framework (IRF) technology creates a virtual fabric by managing several switches as one logical device, which increases network resilience, performance, and availability, while reducing operational complexity. These switches provide Gigabit Ethernet access and can be used at the edge of a network or to connect server clusters in data centers. High scalability provides investment protection with two expansion slots, each of which can support two-port 10GbE expansion modules. High availability, simplified management, and comprehensive security control policies are among the key features that distinguish this series.

Quality of Service (QoS)

• Broadcast control: allows limitation of broadcast traffic rate to cut down on unwanted network broadcast traffic


Management

• Friendly port names: allows assignment of descriptive names to ports


Connectivity

• Auto-MDIX: automatically adjusts for straight-through or crossover cables on all 10/100/1000 ports


Performance

• Nonblocking architecture: up to 192 Gbps nonblocking switching fabric provides wire-speed switching with up to 143 million pps throughput


Resiliency and high availability

• Separate data and control paths: separates control from services and keeps service processing isolated; increases security and performance


Layer 2 switching

• 16K MAC address table: provides access to many Layer 2 devices


Layer 3 services

• Address Resolution Protocol (ARP): determines the MAC address of another IP host in the same subnet; supports static ARPs; gratuitous ARP allows detection of duplicate IP addresses; proxy ARP allows normal ARP operation between subnets or when subnets are separated by a Layer 2 network

Specificaties

Poorten & interfaces
Aantal basis-switching RJ-45 Ethernet-poorten48
Aantal Combo SFP-poorten4
Aantal SFP/SFP+ poorten4
Aantal Gigabit Ethernet (koper)-poorten48
Koperen ethernetbekabelingstechnologie1000BASE-T, 100BASE-TX, 10BASE-T
Netwerk
NetwerkstandaardIEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Full duplexJa
Koperen ethernetbekabelingstechnologie1000BASE-T, 100BASE-TX, 10BASE-T
Routing entries32
Data-uitwisseling
MAC-adrestabel16000 entries
Ondersteunde data-overdrachtsnelheden10/100/1000 Mbps
Switchingcapaciteit192 Gbit/s
Throughput142 Mpps
Max. overdrachtssnelheid1 Gbit/s
Packet buffergeheugen4 MB
Design
Rack-montageJa
Kleur van het productZwart
VeiligheidUL 60950-1, EN 60825-1, EN 60825-2, IEC 60950-1
CertificeringFCC, RoHS
Prestatie
Type geheugenSDRAM
Intern geheugen128 MB
Flash memory16 MB
Packet buffergeheugen4 MB
Energie
AC-ingangsspanning100 - 240 V
AC-ingangsfrequentie50 - 60 Hz
Stroomverbruik (typisch)145 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)Nee
Overige specificaties
Latentie3.2 µs
Afmetingen (B x D x H)440 x 300 x 43,6 mm
Eisen aan de omgeving
Bedrijfstemperatuur (T-T)0 - 45 °C
Luchtvochtigheid bij opslag10 - 90 procent
Warmtedissipatie495 BTU/h
Gewicht en omvang
Breedte440 mm
Diepte300 mm
Hoogte43,6 mm
Gewicht5 kg
Certificaten
CertificeringFCC, RoHS
