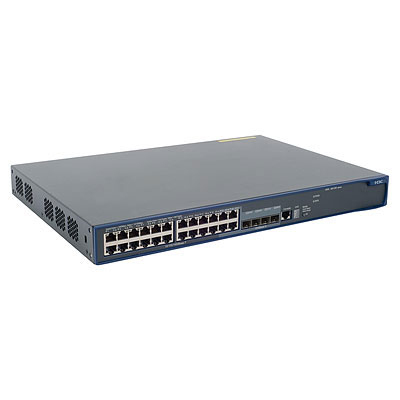

HPE A A5120-24G L3 1U Grijs

HPE A A5120-24G L3 1U Grijs

  • Merk: HPE
  • Categorie:
  • SKU: JE066A
  • EAN: 0885631201220 6934648014447 08 ...8014447 0885631201251 0885631201213 0885631201275 8856312012130 8856312012208 0885631201237 3609740155864 4056572402311 0885631201268 3540260116679meer
HP 5120-24G EI Switch

Handelsprijzen

Distributeur Product SKU Voorraad Bijgewerkt Prijs
Direct Hardware Supply

HP 5120-24G EI Switch

 JE066A Registreer gratis bekijk de voorraad

Verwante producten

Beschrijving

The HP 5120 EI Switch Series is comprised of Gigabit Ethernet switches that support static Layer 3 routing, diversified services, and IPv6 forwarding, as well as provide up to four 10-Gigabit Ethernet (10GbE) extended interfaces. Unique Intelligent Resilient Framework (IRF) technology creates a virtual fabric by managing several switches as one logical device, which increases network resilience, performance, and availability, while reducing operational complexity. These switches provide Gigabit Ethernet access and can be used at the edge of a network or to connect server clusters in data centers. High scalability provides investment protection with two expansion slots, each of which can support two-port 10GbE expansion modules. High availability, simplified management, and comprehensive security control policies are among the key features that distinguish this series.

Quality of Service (QoS)

• Broadcast control: allows limitation of broadcast traffic rate to cut down on unwanted network broadcast traffic


Management

• Friendly port names: allows assignment of descriptive names to ports


Connectivity

• Auto-MDIX: automatically adjusts for straight-through or crossover cables on all 10/100/1000 ports


Performance

• Nonblocking architecture: up to 192 Gbps nonblocking switching fabric provides wire-speed switching with up to 143 million pps throughput


Resiliency and high availability

• Separate data and control paths: separates control from services and keeps service processing isolated; increases security and performance


Layer 2 switching

• 16K MAC address table: provides access to many Layer 2 devices


Layer 3 services

• Address Resolution Protocol (ARP): determines the MAC address of another IP host in the same subnet; supports static ARPs; gratuitous ARP allows detection of duplicate IP addresses; proxy ARP allows normal ARP operation between subnets or when subnets are separated by a Layer 2 network

Specificaties

Beheerfuncties
Switch-laagL3
Poorten & interfaces
Aantal basis-switching RJ-45 Ethernet-poorten24
NetstekkerDC-in ingang
Netwerk
NetwerkstandaardIEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Full duplexJa
Routing entries32
Data-uitwisseling
MAC-adrestabel16000 entries
Ondersteunde data-overdrachtsnelheden10/100/1000
Switchingcapaciteit48 Gbit/s
Max. overdrachtssnelheid10 Gbit/s
Design
Rack-montageJa
StapelbaarJa
Kleur van het productGrijs
Vormfactor1U
Energie
AC-ingangsspanning100 - 240 V
AC-ingangsfrequentie50 - 60 Hz
Stroomverbruik (typisch)62 W
NetstekkerDC-in ingang
Eisen aan de omgeving
Bedrijfstemperatuur (T-T)0 - 45 °C
Relatieve vochtigheid in bedrijf (V-V)10 - 90 procent
Gewicht en omvang
Breedte300 mm
Diepte440 mm
Hoogte43,6 mm
Gewicht4,5 kg
Prestatie
StapelbaarJa
