Beschrijving

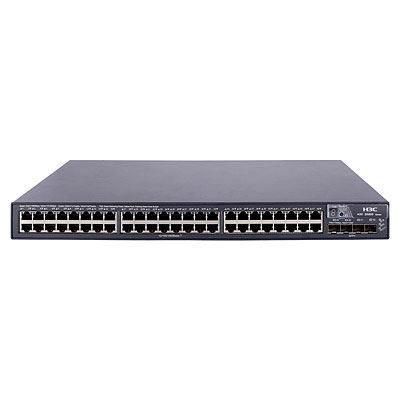

HP 5800 series switches offer an unmatched combination of Gigabit and 10-Gigabit Ethernet port density, high-availability architecture, and full Layer 2 and Layer 3 dual-stack IPv4 and IPv6 capabilities. In addition to wire-speed line-rate performance on all ports, the switches include patented Intelligent Resilient Framework (IRF) technology and Rapid Ring Protection Protocol (RRPP), which allow local or geographically distributed HP 5800 switches to be interconnected for higher resiliency and performance. Available in PoE and non-PoE models as well as 1 RU and 2 RU form factor configurations, HP 5800 switches are built on open standards and include an open application architecture (OAA) module slot that enables flexible deployment options for new services. These versatile switches are ideal for use in the network core of buildings or departments, or as high-performance switches in the convergence layer or network edge of enterprise campus networks.
Quality of Service (QoS)
• Powerful QoS feature: creates traffic classes based on access control lists (ACLs), IEEE 802.1p precedence, IP, and DSCP or Type of Service (ToS) precedence; supports filter, redirect, mirror, or remark; supports the following congestion actions: strict priority (SP) queuing, weighted round robin (WRR), weighted fair queuing (WFQ), weighted random early discard (WRED), weighted deficit round robin (WDRR), and SP+WDRR
Management
• Remote configuration and management: enables configuration and management through a secure Web browser or a CLI located at a remote device
Connectivity
• High-density port connectivity: supports up to 84 1-Gigabit ports per unit (612 per stack)
Performance
• Hardware-based wire-speed access control lists (ACLs): helps provide high levels of security and ease of administration without impacting network performance with a feature-rich TCAM-based ACL implementation
Resiliency and high availability
• Data center–optimized design: the HP 5800AF-48G Switch (JG225A) supports front-to-back/back-to-front airflow for hot/cold aisles, rear rack mounts, and redundant hot-swappable AC or DC power and fans
Manageability
• Full-featured console: provides complete control of the switch with a familiar CLI
Layer 2 switching
• GARP VLAN Registration Protocol: allows automatic learning and dynamic assignment of VLANs
Quality of Service (QoS)
• Powerful QoS feature: creates traffic classes based on access control lists (ACLs), IEEE 802.1p precedence, IP, and DSCP or Type of Service (ToS) precedence; supports filter, redirect, mirror, or remark; supports the following congestion actions: strict priority (SP) queuing, weighted round robin (WRR), weighted fair queuing (WFQ), weighted random early discard (WRED), weighted deficit round robin (WDRR), and SP+WDRR
Management
• Remote configuration and management: enables configuration and management through a secure Web browser or a CLI located at a remote device
Connectivity
• High-density port connectivity: supports up to 84 1-Gigabit ports per unit (612 per stack)
Performance
• Hardware-based wire-speed access control lists (ACLs): helps provide high levels of security and ease of administration without impacting network performance with a feature-rich TCAM-based ACL implementation
Resiliency and high availability
• Data center–optimized design: the HP 5800AF-48G Switch (JG225A) supports front-to-back/back-to-front airflow for hot/cold aisles, rear rack mounts, and redundant hot-swappable AC or DC power and fans
Manageability
• Full-featured console: provides complete control of the switch with a familiar CLI
Layer 2 switching
• GARP VLAN Registration Protocol: allows automatic learning and dynamic assignment of VLANs
Specificaties
| Beheerfuncties | |
|---|---|
| Switch-laag | L3 |
| Switch type | Managed |
| Web-gebaseerd management | Ja |
| System event log | Ja |
| Quality of Service (QoS) | Ja |
| Multicast-ondersteuning | Ja |
| Poorten & interfaces | |
| Aantal basis-switching RJ-45 Ethernet-poorten | 48 |
| Aantal moduleslots SPF+ | 4 |
| Aantal SFP/SFP+ poorten | 4 |
| Console port | RJ-45 |
| Netstekker | DC-in ingang |
| Koperen ethernetbekabelingstechnologie | 1000BASE-T, 100BASE-T, 100BASE-TX, 10BASE-T |
| Netwerk | |
| Netwerkstandaard | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
| Full duplex | Ja |
| Koperen ethernetbekabelingstechnologie | 1000BASE-T, 100BASE-T, 100BASE-TX, 10BASE-T |
| Verbindingsaggregatie | Ja |
| Ethernet LAN, data-overdrachtsnelheden | 10,100,1000 Mbit/s |
| Datastroombeheer | Ja |
| Broadcast stormbeheer | Ja |
| Data-uitwisseling | |
| MAC-adrestabel | 32000 entries |
| Ondersteunde data-overdrachtsnelheden | 10/100/1000 Mbps |
| Throughput | 190 Mpps |
| Max. overdrachtssnelheid | 1 Gbit/s |
| Jumbo Frames ondersteuning | Ja |
| Packet buffergeheugen | 512 MB |
| Multicast-functies | |
| Multicast-ondersteuning | Ja |
| Protocollen | |
| Beheerprotocollen | QoS, VLAN, SNMP v1/v2c/v3, Telnet, RMON 1, 2, 3, 9, sFlow |
| Design | |
| Rack-montage | Ja |
| Kleur van het product | Zwart |
| Vormfactor | 1U |
| Veiligheid | UL 60950-1; EN 60825-1; EN 60825-2; IEC 60950-1; CAN/CSA-C22.2 No. 60950-1; ULAR; GOST; EN 60950-1/A11; FDA 21 CFR; NOM; ROHS |
| Elektromagnetische compatibiliteit | VCCI; EN 5502; ICES-003; ANSI C63.4 2003; AS/NZS CISPR22; EN 61000-3-2:2006; EN 61000-3-3:1995 +A1:2001+A2:2005; EMC Directive 2004/108/EC; FCC |
| Certificering | ROHS |
| Prestatie | |
| Type geheugen | SDRAM |
| Intern geheugen | 1024 MB |
| Flash memory | 512 MB |
| Packet buffergeheugen | 512 MB |
| Energie | |
| AC-ingangsspanning | 100 - 240 V |
| AC-ingangsfrequentie | 50 - 60 Hz |
| Netstekker | DC-in ingang |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Nee |
| Overige specificaties | |
| Beheerplatform | IMC; Web browser; SNMP; Telnet; HTTPS; RMON1; FTP |
| Latentie | 4,02 |
| Ethernet interface type | Gigabit Ethernet |
| Geluidsdruk | 45,3 dB |
| Ethernet LAN, data-overdrachtsnelheden | 10,100,1000 Mbit/s |
| Eisen aan de omgeving | |
| Relatieve vochtigheid in bedrijf (V-V) | 10 - 90 procent |
| Warmtedissipatie | 557 BTU/h |
| Gewicht en omvang | |
| Breedte | 440 mm |
| Diepte | 367 mm |
| Hoogte | 43 mm |
| Gewicht | 6,5 kg |
| Inhoud van de verpakking | |
| Gebruiksaanwijzing | Ja |
| Certificaten | |
| Certificering | ROHS |
| Verpakking | |
| Gebruiksaanwijzing | Ja |
