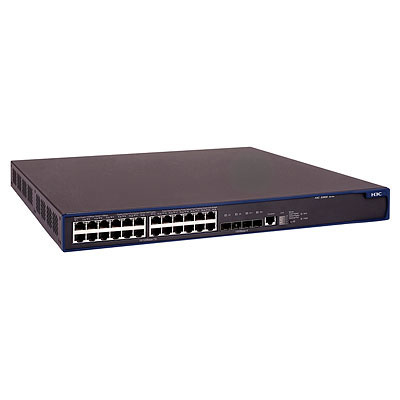

HP A3600-24-PoE EI Switch |
JD326A |
Verwante producten
Beschrijving
The HP 3600 EI Switch Series delivers premium levels of intelligent and resilient performance, security, and reliability for robust switching at the enterprise network edge. The series consists of Layer 3 Fast Ethernet and PoE/PoE+ switches, with advanced features that can accommodate the most demanding applications. Secure, resilient connectivity and the latest traffic-prioritization technologies enhance converged networks. Designed for increased flexibility and scalability, HP 3600 EI series switches come with 24 or 48 10/100 ports, four active SFP-based Gigabit Ethernet ports for stacking and uplinks, and a 24-port 100BASE-FX switch with two or four Gigabit Ethernet SFP slots.
Specificaties
| Poorten & interfaces | |
|---|---|
| Aantal basis-switching RJ-45 Ethernet-poorten | 24 |
| Aantal moduleslots SPF | 4 |
| Aantal SFP/SFP+ poorten | 4 |
| Vezel-optische connector | SFP |
| Netwerk | |
| Netwerkstandaard | IEEE 802.3, IEEE 802.3af, IEEE 802.3u |
| Full duplex | Ja |
| Ethernet LAN, data-overdrachtsnelheden | 10,100,1000 Mbit/s |
| 10G support | Nee |
| Data-uitwisseling | |
| MAC-adrestabel | 8448 entries |
| Ondersteunde data-overdrachtsnelheden | 10/100/1000 Mbps |
| Switchingcapaciteit | 12,8 Gbit/s |
| Throughput | 9,5 Mpps |
| Max. overdrachtssnelheid | 1 Gbit/s |
| Packet buffergeheugen | 32 MB |
| Design | |
| Rack-montage | Ja |
| Stapelbaar | Nee |
| Kleur van het product | Zwart |
| Vormfactor | 19U |
| Veiligheid | UL, IEC, EN, CAN/CSA, CFR, ROHS |
| Prestatie | |
| Type geheugen | SDRAM |
| Intern geheugen | 64 MB |
| Flash memory | 16 MB |
| Stapelbaar | Nee |
| Packet buffergeheugen | 32 MB |
| Energie | |
| AC-ingangsspanning | 100 - 240 V |
| AC-ingangsfrequentie | 50 - 60 Hz |
| Stroomverbruik (typisch) | 450 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Ja |
| Overige specificaties | |
| Latentie | 10 µs |
| Connectiviteitstechnologie | Bedraad |
| Power LED | Ja |
| Ethernet LAN | Ja |
| Ethernet interface type | Fast Ethernet, Gigabit Ethernet |
| Ethernet LAN, data-overdrachtsnelheden | 10,100,1000 Mbit/s |
| Eisen aan de omgeving | |
| Bedrijfstemperatuur (T-T) | 0 - 45 °C |
| Relatieve vochtigheid in bedrijf (V-V) | 10 - 90 procent |
| Warmtedissipatie | 511 BTU/h |
| Gewicht en omvang | |
| Breedte | 420 mm |
| Diepte | 440 mm |
| Hoogte | 43 mm |
| Gewicht | 6 kg |
| Optische vezel | |
| Vezel-optische connector | SFP |
