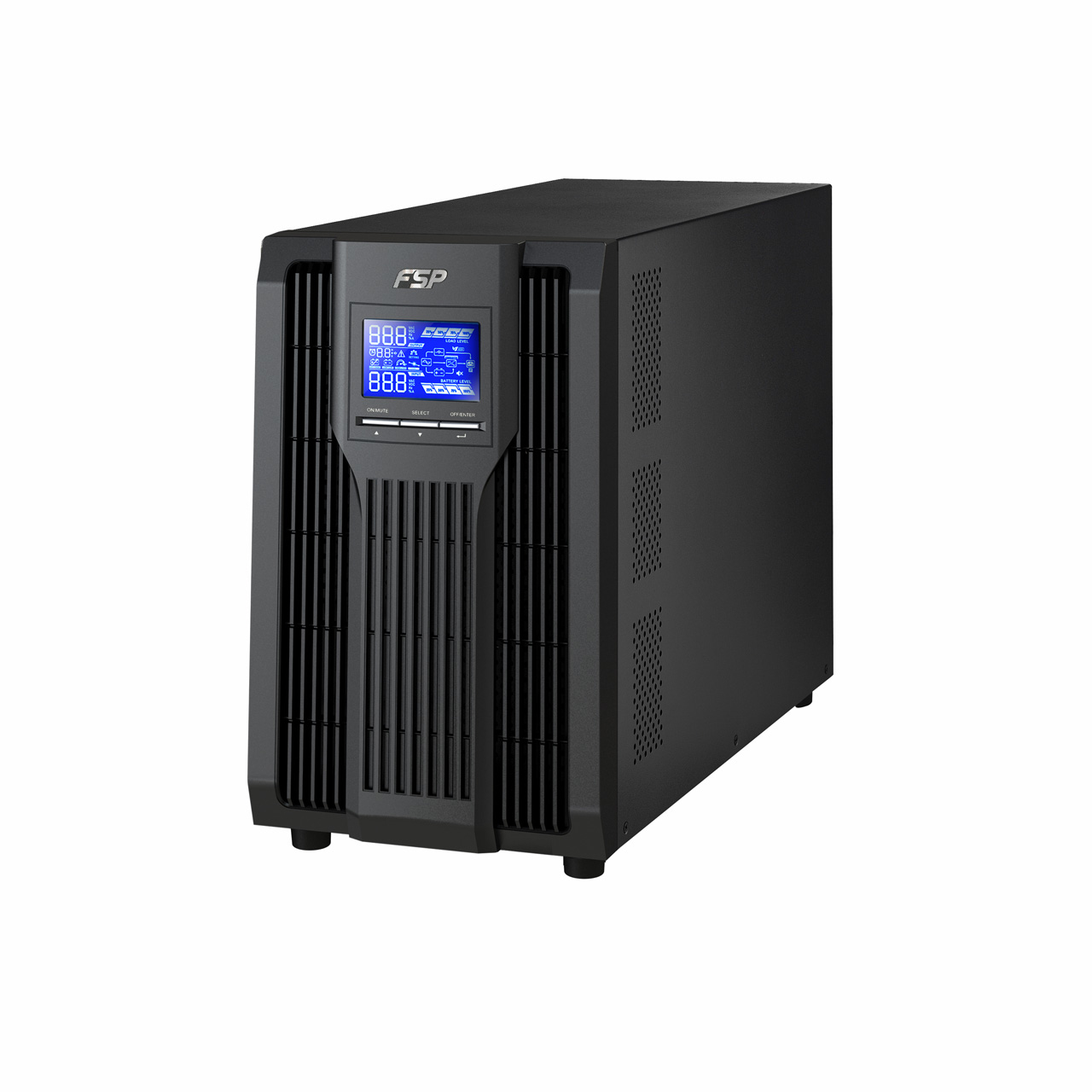

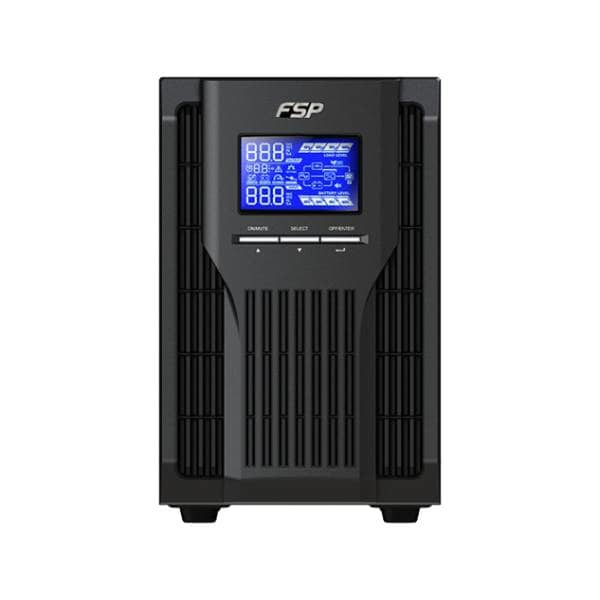

FSP Champ Tower 3K UPS Dubbele conversie (online) 3 kVA 2700 W
- Merk: FSP
- Categorie:
- SKU: PPF24A1807
- EAN: 4711140487618 2000000852225
FSP Champ Tower 3K, Dubbele conversie (online), 3 kVA, 2700 W, Sinus, 120 V, 300 V
Offer details
Verwante producten
Beschrijving
FSP Champ Tower 3K. UPS-topologie: Dubbele conversie (online), Output power capacity: 3 kVA, Uitgangsvermogen: 2700 W. USB-poorttype: USB Type-B, Soort serieële aansluiting: RS-232. Batterij capaciteit: 9 Ah, Accu/Batterij voltage: 12 V, Typische backup tijd op volledige lading: 3,5 min. Vormfactor: Tower, Kleur van het product: Zwart, Soort bediening: Knoppen. Breedte: 190 mm, Diepte: 421 mm, Hoogte: 318 mm
Specificaties
Energie | |
---|---|
Output frequentie | 47/63 Hz |
Output power capacity | 3 kVA |
Uitgangsvermogen | 2700 W |
Ingang operation voltage (min) | 120 V |
Ingang operation voltage (max) | 300 V |
Uitgang operation voltage (min) | 200 V |
Uitgang operation voltage (max) | 240 V |
Power factor | 0,99 |
Uitgangsspanningsregeling | 1 procent |
Crest factor | 3:1 |
THD (lineaire belasting) | 3 procent |
THD (niet-lineaire belasting) | 6 procent |
Frequentie | 40 - 70 Hz |
Prestatie | |
UPS-topologie | Dubbele conversie (online) |
Hoorbare alarmstanden | Alarm bij werking op batterij, Storing, Alarm bij laag batterijniveau, Alarm bij overbelasting |
Golfvorm | Sinus |
Geluidsniveau | 50 dB |
LED-indicatoren | Ja |
Geluidsalarm(en) | Ja |
Kenmerken | |
Output frequentie | 47/63 Hz |
UPS-topologie | Dubbele conversie (online) |
Output power capacity | 3 kVA |
Hoorbare alarmstanden | Alarm bij werking op batterij, Storing, Alarm bij laag batterijniveau, Alarm bij overbelasting |
Uitgangsvermogen | 2700 W |
Ingang operation voltage (min) | 120 V |
Ingang operation voltage (max) | 300 V |
Uitgang operation voltage (min) | 200 V |
Uitgang operation voltage (max) | 240 V |
Golfvorm | Sinus |
Power factor | 0,99 |
Uitgangsspanningsregeling | 1 procent |
Crest factor | 3:1 |
Geluidsniveau | 50 dB |
Geluidsalarm(en) | Ja |
THD (lineaire belasting) | 3 procent |
THD (niet-lineaire belasting) | 6 procent |
Frequentie | 40 - 70 Hz |
Poorten & interfaces | |
USB-poort | Ja |
Seriële interface | Ja |
Soort serieële aansluiting | RS-232 |
RS-232 port | 1 |
Number of output IEC jumpers | 4 |
Aantal USB 2.0-poorten | 1 |
USB-poorttype | USB Type-B |
Accu/Batterij | |
Aantal batterijcellen | 6 |
Typische backup tijd op halve lading | 9,8 min |
Typische backup tijd op volledige lading | 3,5 min |
Batterij capaciteit | 9 Ah |
Accu/Batterij voltage | 12 V |
Oplaadduur batterij | 4 uur |
Design | |
Vormfactor | Tower |
Kleur van het product | Zwart |
LED-indicatoren | Ja |
Soort bediening | Knoppen |
Type beeldscherm | LCD |
Eisen aan de omgeving | |
Bedrijfstemperatuur (T-T) | 0 - 40 °C |
Relatieve vochtigheid in bedrijf (V-V) | 20 - 90 procent |
Technische details | |
Output frequentie | 47/63 Hz |
Code geharmoniseerd systeem (HS) | 85078000 |
Inhoud van de verpakking | |
Batterijen inbegrepen | Ja |
Meegeleverde kabels | Stroomingangskabel, USB-kabel |
Gebruikershandleiding | Ja |
Software-cd | Ja |
Gewicht en omvang | |
Breedte | 190 mm |
Diepte | 421 mm |
Hoogte | 318 mm |
Gewicht | 27,6 kg |
Verpakking | |
Meegeleverde kabels | Stroomingangskabel, USB-kabel |
Gebruikershandleiding | Ja |
Software-cd | Ja |
Logistieke gegevens | |
Code geharmoniseerd systeem (HS) | 85078000 |
