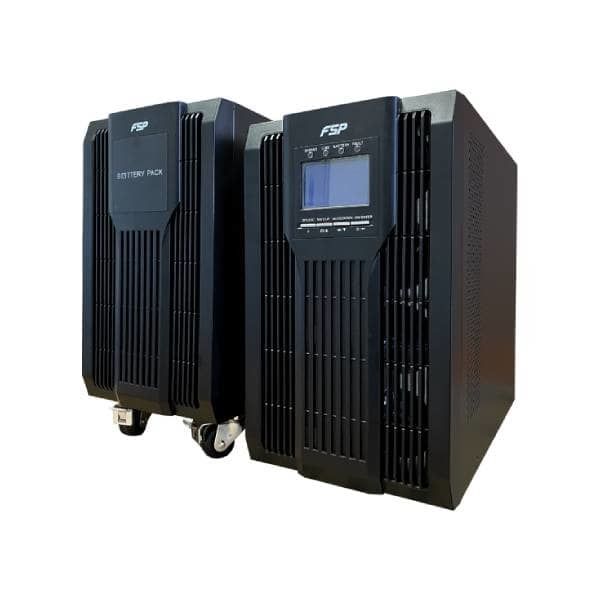

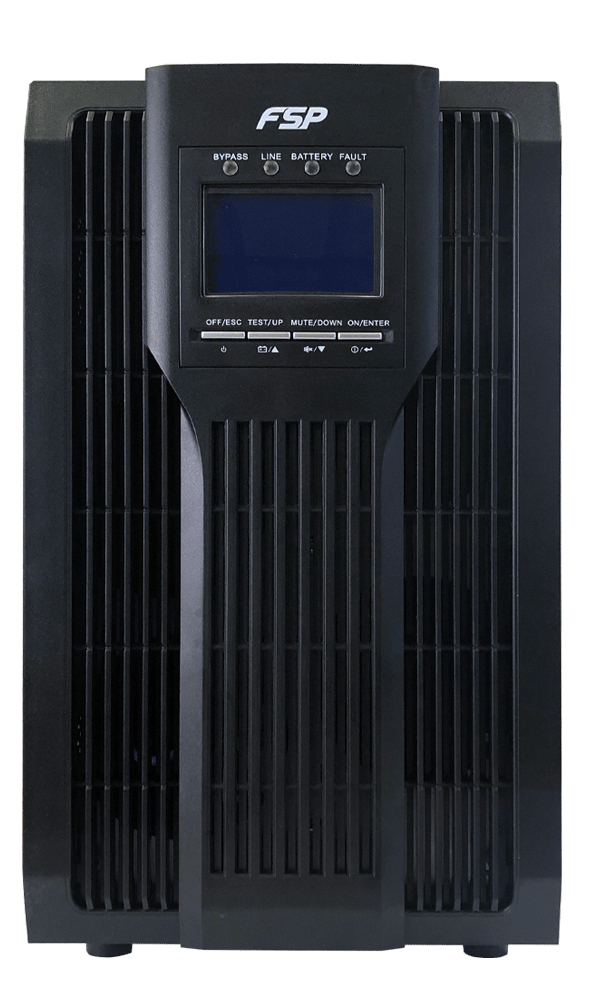

FSP Champ Tower 10KL UPS Dubbele conversie (online) 10 kVA 9000 W
- Merk: FSP
- Categorie:
- SKU: PPF90A0904
- EAN: 4713224524875
FSP Champ Tower 10KL, Dubbele conversie (online), 10 kVA, 9000 W, Sinus, 110 V, 300 V
Offer details
Verwante producten
Beschrijving
FSP Champ Tower 10KL. UPS-topologie: Dubbele conversie (online), Output power capacity: 10 kVA, Uitgangsvermogen: 9000 W. USB-poorttype: USB Type-B, Soort serieële aansluiting: RS-232. Typische backup tijd op volledige lading: 6 min. Vormfactor: Tower, Kleur van het product: Zwart, Type koeling: Actief. Meegeleverde kabels: Stroomingangskabel, USB-kabel
Specificaties
Energie | |
---|---|
Output frequentie | 46/64 Hz |
Output power capacity | 10 kVA |
Uitgangsvermogen | 9000 W |
Ingang operation voltage (min) | 110 V |
Ingang operation voltage (max) | 300 V |
Uitgang operation voltage (min) | 208 V |
Uitgang operation voltage (max) | 240 V |
Emergency Power Off (EPO) | Ja |
Power factor | 0,99 |
Uitgangsspanningsregeling | 1 procent |
Crest factor | 3:1 |
Efficiency (batterijmodus) | 91 procent |
THD (lineaire belasting) | 3 procent |
THD (niet-lineaire belasting) | 5 procent |
Efficiëntie (Lijnmodus) | 93 procent |
Frequentie | 46/64 Hz |
Prestatie | |
UPS-topologie | Dubbele conversie (online) |
Golfvorm | Sinus |
Geluidsniveau | 58 dB |
LED-indicatoren | Ja |
Kenmerken | |
Output frequentie | 46/64 Hz |
UPS-topologie | Dubbele conversie (online) |
Output power capacity | 10 kVA |
Uitgangsvermogen | 9000 W |
Ingang operation voltage (min) | 110 V |
Ingang operation voltage (max) | 300 V |
Uitgang operation voltage (min) | 208 V |
Uitgang operation voltage (max) | 240 V |
Emergency Power Off (EPO) | Ja |
Golfvorm | Sinus |
Power factor | 0,99 |
Uitgangsspanningsregeling | 1 procent |
Crest factor | 3:1 |
Geluidsniveau | 58 dB |
Efficiency (batterijmodus) | 91 procent |
THD (lineaire belasting) | 3 procent |
THD (niet-lineaire belasting) | 5 procent |
Efficiëntie (Lijnmodus) | 93 procent |
Frequentie | 46/64 Hz |

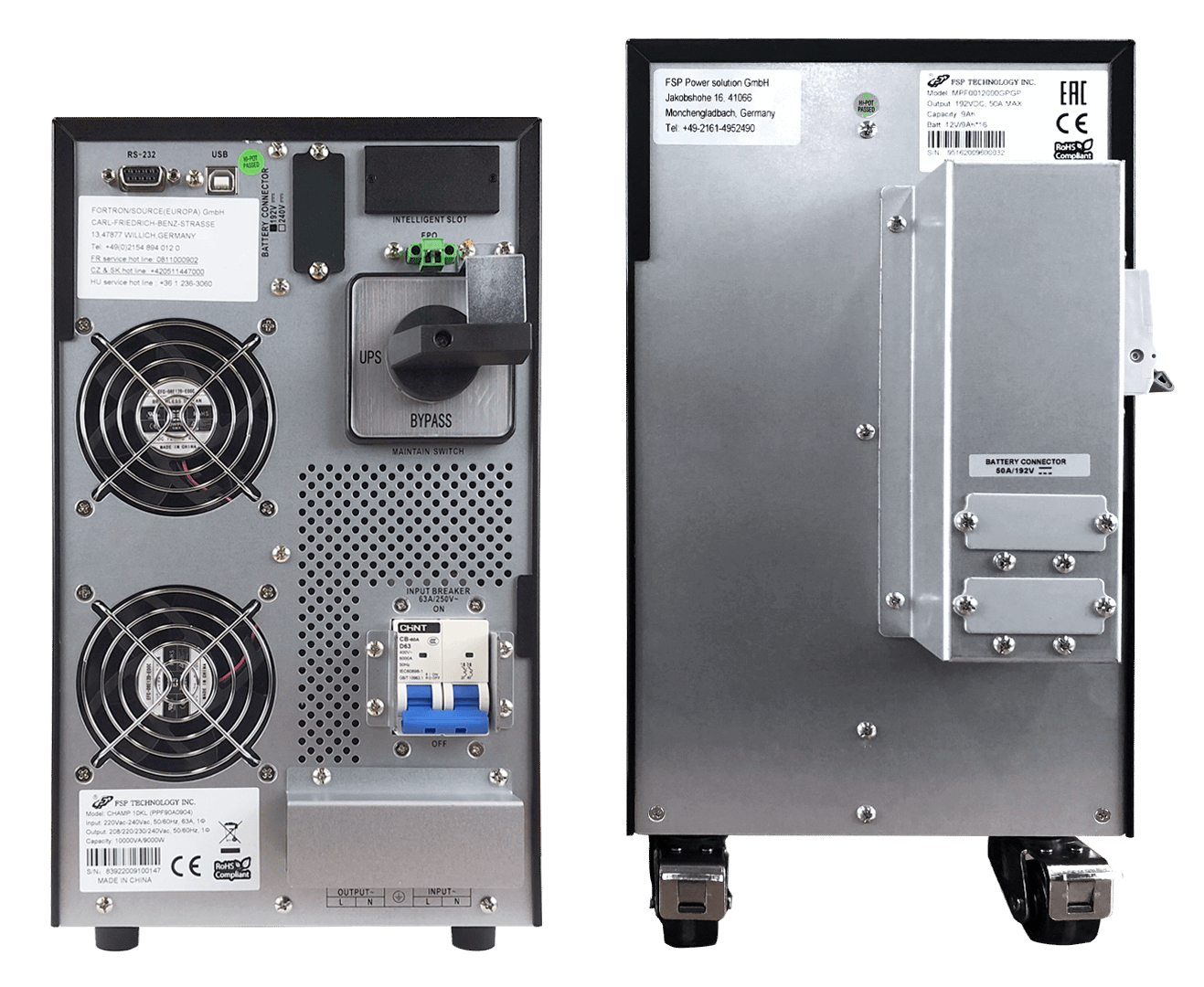

Poorten & interfaces | |
Noodstop-aansluiting (EPO) | Ja |
USB-poort | Ja |
Seriële interface | Ja |
Soort serieële aansluiting | RS-232 |
RS-232 port | 1 |
Aantal USB 2.0-poorten | 1 |
USB-poorttype | USB Type-B |
Accu/Batterij | |
Ondersteund aantal accu's/batterijen | 20 |
Typische backup tijd op volledige lading | 6 min |
Design | |
Vormfactor | Tower |
Kleur van het product | Zwart |
Type koeling | Actief |
LED-indicatoren | Ja |
Ingebouwde ventilator | Ja |
Soort bediening | Knoppen |
Type beeldscherm | LCD |
Eisen aan de omgeving | |
Bedrijfstemperatuur (T-T) | 0 - 40 °C |
Relatieve vochtigheid in bedrijf (V-V) | 0 - 95 procent |
Hoogte, in bedrijf | 0 - 1000 m |
Technische details | |
Output frequentie | 46/64 Hz |
Naleving van duurzaamheid | Ja |
Code geharmoniseerd systeem (HS) | 85078000 |
Certificaten van naleving | CE |
Koeling | |
Type koeling | Actief |
Ingebouwde ventilator | Ja |
Verpakking | |

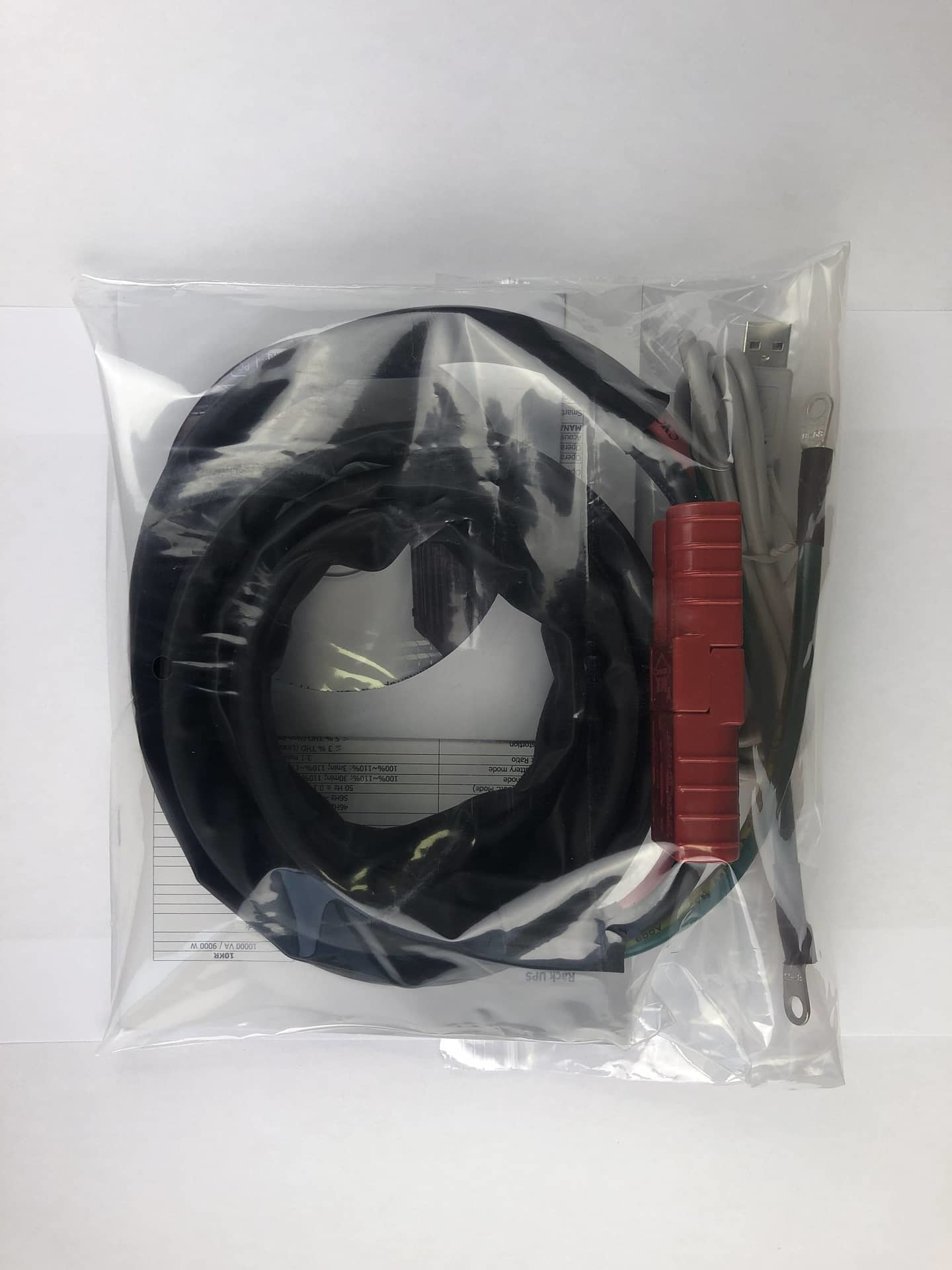

Meegeleverde kabels | Stroomingangskabel, USB-kabel |
Ondersteunings-cd | Ja |
Gebruikershandleiding | Ja |
Logistieke gegevens | |
Code geharmoniseerd systeem (HS) | 85078000 |
Inhoud van de verpakking | |
Meegeleverde kabels | Stroomingangskabel, USB-kabel |
Ondersteunings-cd | Ja |
Gebruikershandleiding | Ja |
