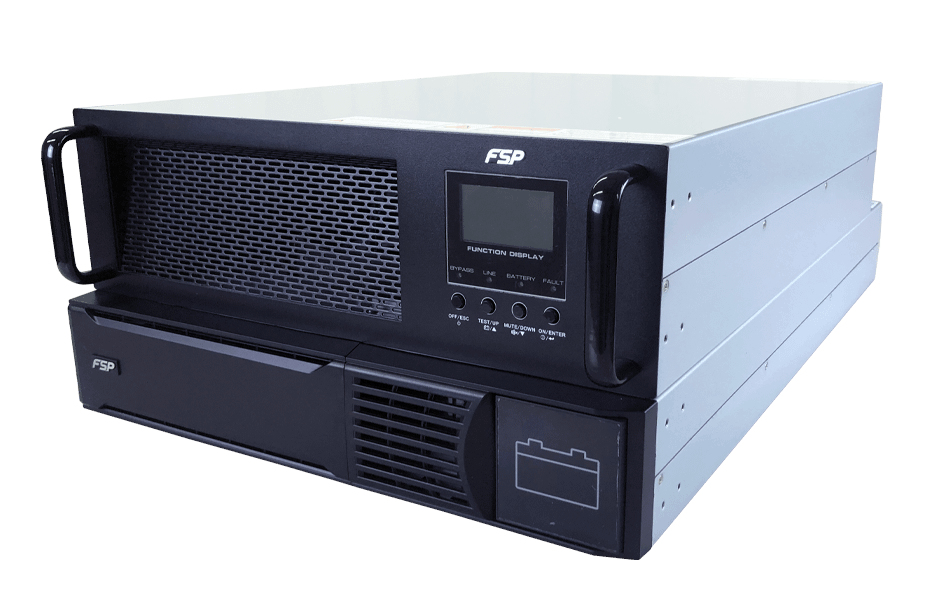

FSP Champ Rack 10KL UPS Dubbele conversie (online) 10 kVA 9000 W
- Merk: FSP
- Categorie:
- SKU: PPF90A1201
- EAN: 4713224524868
FSP Champ Rack 10KL, Dubbele conversie (online), 10 kVA, 9000 W, Sinus, 110 V, 300 V
Offer details
Verwante producten
Beschrijving
FSP Champ Rack 10KL. UPS-topologie: Dubbele conversie (online), Output power capacity: 10 kVA, Uitgangsvermogen: 9000 W. USB-poorttype: USB Type-B, Soort serieële aansluiting: RS-232. Vormfactor: Rackmontage/toren, Kleur van het product: Zwart, Soort bediening: Knoppen. Breedte: 580 mm, Diepte: 438 mm, Hoogte: 133 mm. Meegeleverde kabels: Stroomingangskabel, USB-kabel
Specificaties
Energie | |
---|---|
Output frequentie | 46/64 Hz |
Output power capacity | 10 kVA |
Uitgangsvermogen | 9000 W |
Ingang operation voltage (min) | 110 V |
Ingang operation voltage (max) | 300 V |
Uitgang operation voltage (min) | 208 V |
Uitgang operation voltage (max) | 240 V |
Emergency Power Off (EPO) | Ja |
Power factor | 0,9 |
Uitgangsspanningsregeling | 1 procent |
Crest factor | 3:1 |
THD (lineaire belasting) | 3 procent |
THD (niet-lineaire belasting) | 5 procent |
Frequentie | 46/64 Hz |
Prestatie | |
UPS-topologie | Dubbele conversie (online) |
Golfvorm | Sinus |
Geluidsniveau | 50 dB |
LED-indicatoren | Ja |
Kenmerken | |
Output frequentie | 46/64 Hz |
UPS-topologie | Dubbele conversie (online) |
Output power capacity | 10 kVA |
Uitgangsvermogen | 9000 W |
Ingang operation voltage (min) | 110 V |
Ingang operation voltage (max) | 300 V |
Uitgang operation voltage (min) | 208 V |
Uitgang operation voltage (max) | 240 V |
Emergency Power Off (EPO) | Ja |
Golfvorm | Sinus |
Power factor | 0,9 |
Uitgangsspanningsregeling | 1 procent |
Crest factor | 3:1 |
Geluidsniveau | 50 dB |
THD (lineaire belasting) | 3 procent |
THD (niet-lineaire belasting) | 5 procent |
Frequentie | 46/64 Hz |
Poorten & interfaces | |
Noodstop-aansluiting (EPO) | Ja |
USB-poort | Ja |
Seriële interface | Ja |
Soort serieële aansluiting | RS-232 |
RS-232 port | 1 |
Aantal USB 2.0-poorten | 1 |
USB-poorttype | USB Type-B |
Accu/Batterij | |
Ondersteund aantal accu's/batterijen | 20 |
Design | |
Vormfactor | Rackmontage/toren |
Kleur van het product | Zwart |
LED-indicatoren | Ja |
Soort bediening | Knoppen |
Type beeldscherm | LCD |
Eisen aan de omgeving | |
Bedrijfstemperatuur (T-T) | 0 - 40 °C |
Relatieve vochtigheid in bedrijf (V-V) | 20 - 90 procent |
Technische details | |
Output frequentie | 46/64 Hz |
Code geharmoniseerd systeem (HS) | 85078000 |
Certificaten van naleving | CE |
Gewicht en omvang | |
Breedte | 580 mm |
Diepte | 438 mm |
Hoogte | 133 mm |
Gewicht | 18 kg |
Verpakking | |
Meegeleverde kabels | Stroomingangskabel, USB-kabel |
Gebruikershandleiding | Ja |
Logistieke gegevens | |
Code geharmoniseerd systeem (HS) | 85078000 |
Inhoud van de verpakking | |
Meegeleverde kabels | Stroomingangskabel, USB-kabel |
Gebruikershandleiding | Ja |
